S8102A Pipe Thermostat For Boiler Water Pump
Category:
Actuators
Summary:
Key word:
S8102A Pipe Thermostat For Boiler Water Pump
Automatic Pipe Stat – For automatic on/off of an electric circulation pump on a back boiler stove
The pipe is designed to be mounted on the flow pipe from the back boiler (NB. NOT so close that is will melt). The circulation pump should be wired via the pipe stat. The pipe stat has a manual dial on the top, to allow the user to select the temperature that the pump should switch on. Once the water reaches the desired temperature the pipe stat will automatically start the operation of the circulation pump and when the water temperature falls below the set temperature the pipe stat will automatically turn the circulation pump off.

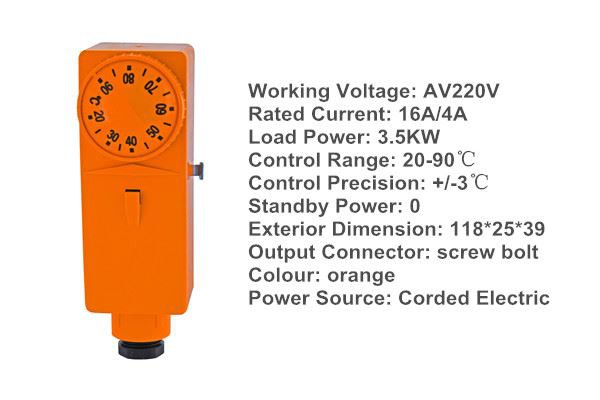

Technical Parameter

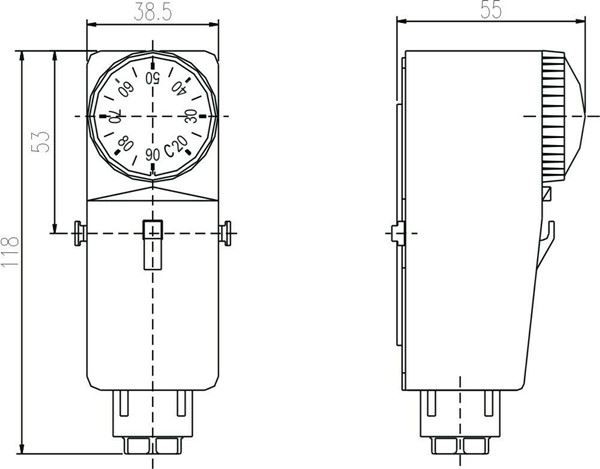

Dimension
Feature
- Suitable for hot water pipe, boiler, heating pipe circulating water pump.
- High temperature start: When the temperature reaches the set temperature, turn on the power to start the device.
- Temperature control range is 20-90℃.
- Compact structure and beautiful appearance, easy to install.
- Pure copper foil, more conductive.
Package List
1 x Temperature Controller
1 x Instruction Manual
1 x Spring
2 x Gasket
1 x Cream
