S8101A Hot Water Pipe Temperature Controller
Category:
Actuators
Summary:
Key word:
S8101A Hot Water Pipe Temperature Controller
Products Show
Specification
Brand: SAPULES
Temperature control range: 0-90°C
Rated voltage: 220V AC
Rated current: 16A
Display Type: Dial Knob
Interface Screw Thread: 1/2''
Service Life of Pressure Detector: 100,000 times

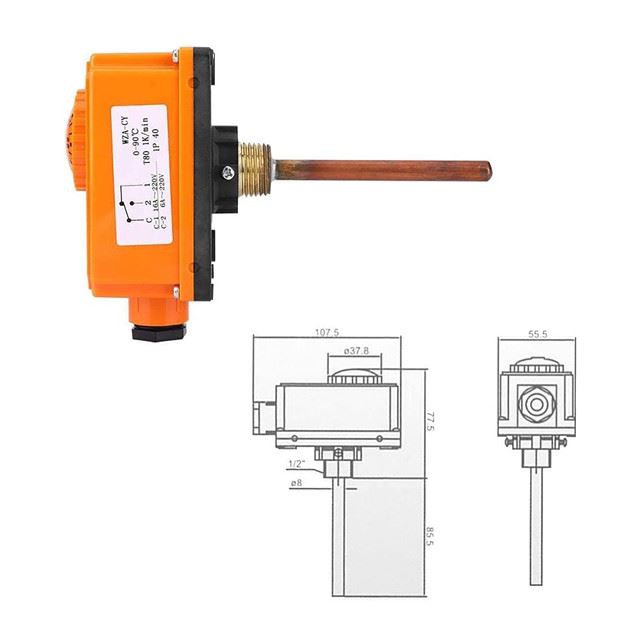

External thread diameter: Approx.20mm
Type
1: High temperature start 90°C
2: High temperature start 110°C
3: Low temperature start 90°C
4: low temperature start 110°C
Feature
- The high temperature start temperature controller is suitable for hot water pipeline.
- High temperature start: When the temperature reaches the set temperature, turn on the power to start the device.
- Temperature control range is 0-90 ° C.
- Made of high-quality materials, long service life, up to 100,000 times.
- Compact structure and beautiful appearance, G1/2 male thread interface, 20mm diameter, easy to install.
Note
Before buying, find out if you need a high temperature start or a low temperature start!

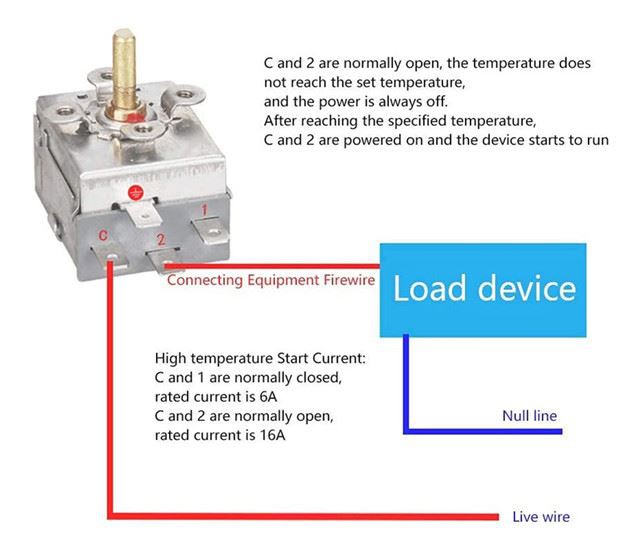

-- High temperature start: When the temperature reaches the set temperature, turn on the power to start the device. (For example, reach 80 degrees, turn on the circulating pump power)
--Low temperature start: When the temperature reaches the set temperature, turn off the power to turn off the device. (eg, reach 80 degrees, disconnect the heater)
