S3207N Water Underfloor Heating Brass Manifold
Category:
Manifold series
Summary:
Key word:

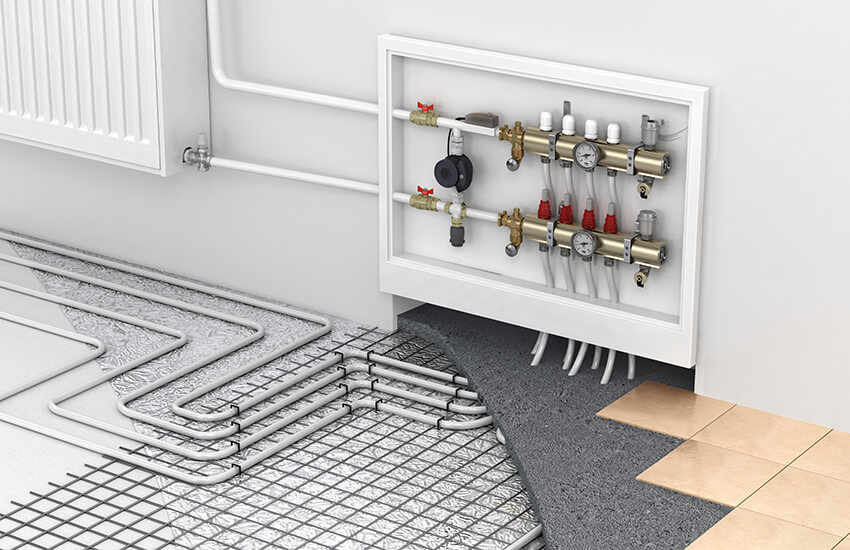

S3207N Water Underfloor Heating Brass Manifold
Manifolds are used in all underfloor heating systems above 30m2, irrespective of floor type. Manifolds are supplied complete and fixed with a wall mounting bracket. The manifold comes complete with the drain and air vent assembly, which can be positioned on either end of the manifold, and isolation valves are supplied separately for the supply end of the manifold.
Each manifold includes a flow meter on each port making it possible to precisely control the flow of water through the system for even and energy efficient heating.
2-12 Ports Underfloor Heating Brass Manifolds Kit
Technical Data (Brass Manifolds)
Usual working temperature 82 C
Max working temperature 105 C
Max working pressure 3 bar
Max test pressure 10 bar
Manifold comes with 5 year warranty
Key Features (Brass Manifolds)
Brass/ nickel plated
Compress fittings/ easy to install
Available with up to 12 ports
Supplied per-mounted on installation brackets
Flow meters included
Valves on return manifold accepts a thermometric type head for remote control of each zone
Connections are euroconus and a range of fittings are available to suit most UK pipe sizes
