S8201B green Circuit Actuator
Category:
Actuators
Summary:
Key word:
S8201B green Circuit Actuator
Product description
Floor Heating System Circuit Actuator
Model: S8201B
Thermal actuator is a two point form switching device which has been tested by TUV. It is usually applied to control radiator, floor heating system or zone valves.
It can automatically close the flux of system under the control of room thermostat and other electrical switch. This model only can be used as on-off administrator.
Technical Parameter
1. Voltage: AC230V (AC24V , AC110V available)
2. Power consumption: ≥2W
3. Force: 130N≥F≥80
4. Stroke:≥3mm

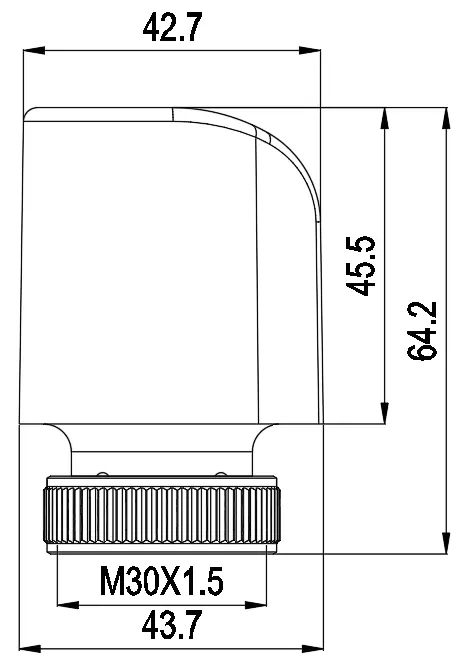

5. Valve interface: M30*1.5
6. Ambient temperature: -10~60°C
7. Protective housing: IP 54
Detailed Images
