S8203B 230V or 24V Normally Closed or Opened Actuators
Category:
Actuators
Summary:
Key word:
S8203B 230V or 24V Normally Closed or Opened Actuators

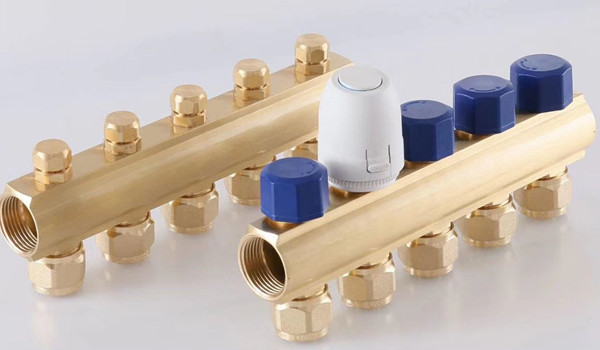

Detailed Images:
AC24/230v NC/NO thermal electric actuator
Model: S8203B
Thermal actuator is a two point form switching device which has been tested by TUV. It is usually applied to control radiator, floor heating system or zone valves.
It can automatically close the flux of system under the control of room thermostat and other electrical switch. This model only can be used as on-off administrator.
Technical Parameter
1. Voltage: AC230V (AC24V , AC110V available)
2. Power consumption: ≥2W
3. Force: 130N≥F≥80
4. Stroke:≥3mm
5. Valve interface: M30*1.5
6. Ambient temperature: -10~60°C
7. Protective housing: IP 54
8. Switch-on curr. Max. 300mA
9. Rel. Humidity: max. 80% non condensing
Feature
Wax-filled element
Reliable longtime operation
Noise-free operation
No mounting tools required
Position indicator on actuator
Normally-closed configuration
Selection table
|
Model No. |
Power |
Type |
|
S8203B |
24V |
NO/NC |
|
S8203B |
110V |
NO/NC |
|
S8203B |
230V |
NO/NC |
