S8203B NC Electric Thermal Actuator
Category:
Actuators
Summary:
Key word:
S8203B NC Electric Thermal Actuator
Specification
Supply 230V/24V, 50/60Hz
Power consumption 2 W
Operating current 50 mA
Start-up current < 300 mA (max. 2 min.)
Running Time approx. 180s (close/open)
Fluid Temperature 0...100℃
Ambient Temperature 0...60℃
Housing IP54, polyamide

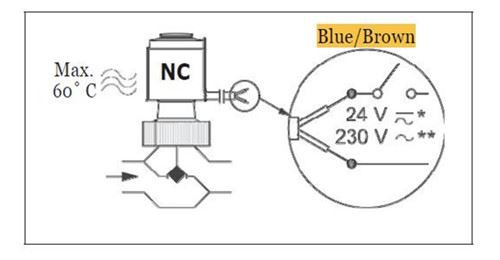

Wiring Diagram

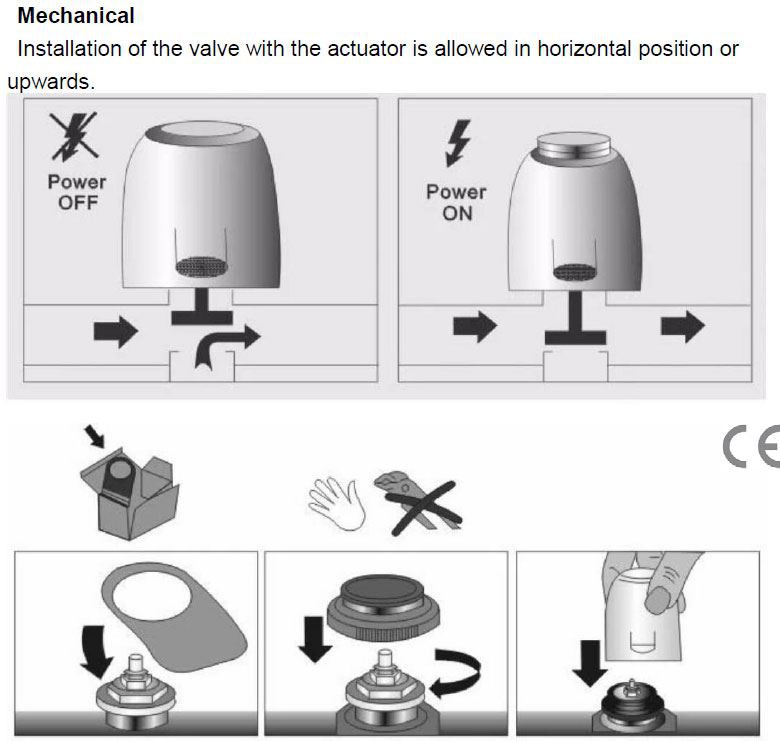

Installation
Features
Adopt top original electric heating paraffin propulsion elements, driven by PTC heating
With spring return function, the -valve is closed (normally closed type) or opened (normally open type) after power failure
The nut link installation method is simple, fast and easy to disassemble
Work smoothly without any noise
Micro power consumption, long service life
Descriptions
The electrothermal actuator is a two-point drive device, which is connected to a controller with a two-point output terminal to control the flow and heat of the terminal equipment.

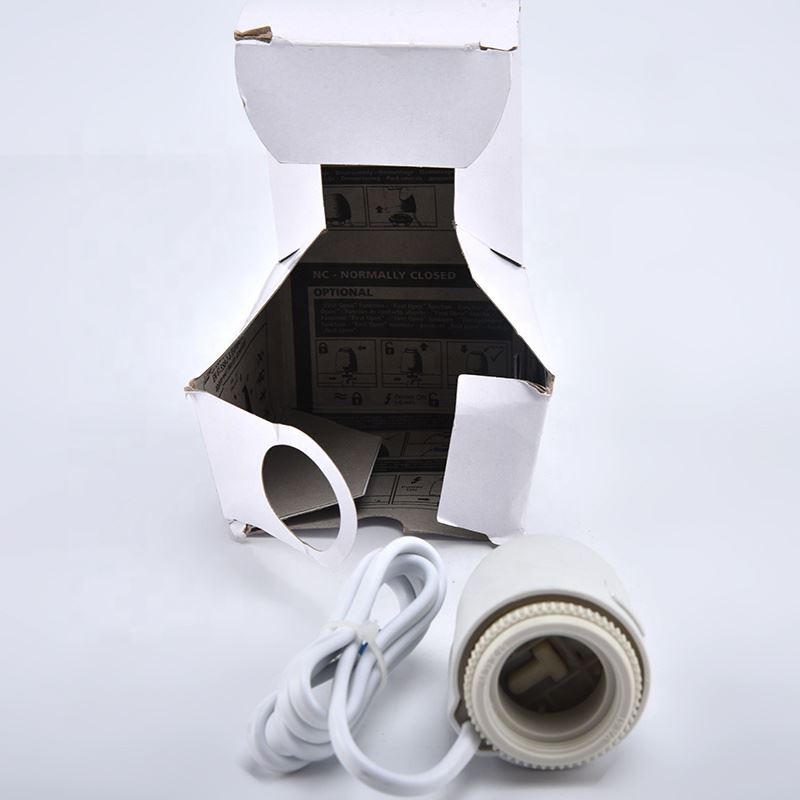

Packaging
