S7202A Air Conditioner Digital Temperature Controller Room FCU Thermostat

* 3D1D includes 3 load digital ON/OFF fan speed outputs and 1 load digital ON/OFF valve output;

* 1A1D includes 1 load analogue EC fan motor output and 1 load digital ON/OFF valve output;

* 1A1A includes 1 load analogue EC fan motor output and 1 load analogue valve output;

The device includes a built in temperature sensor on its front panel for room temperature measurement, and features an advanced control algorithm for fan coil speed and valve position control.

The device includes a simple configuration menu that allows configuring up to 28 parameters. The unit can thus be adapted to the requirements of each installation.

Features

* 100~240Vac, 50/60Hz

* Touch Screen Display

* 60mm Standard Installation Hole Distance

* Change Over-HEAT/COOL

* Configurable for 2 pipe / 4 pipe systems

* Select able temperature units (ºC/ºF)

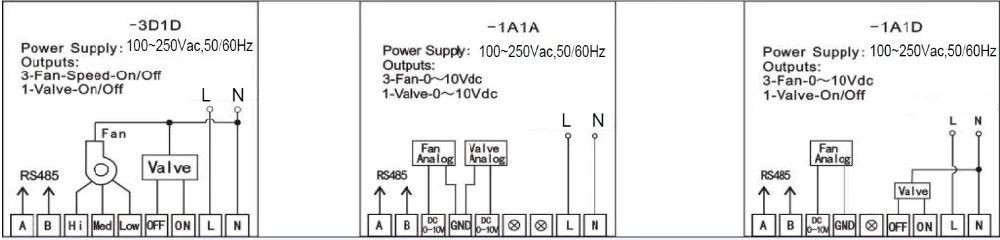

Wiring Diagram
