S8208B Brass Motorized Thermostatic Valve Electric Rotary Actuator
Category:
Actuators
Summary:
Key word:
S8208B Brass Motorized Thermostatic Valve Electric Rotary Actuator

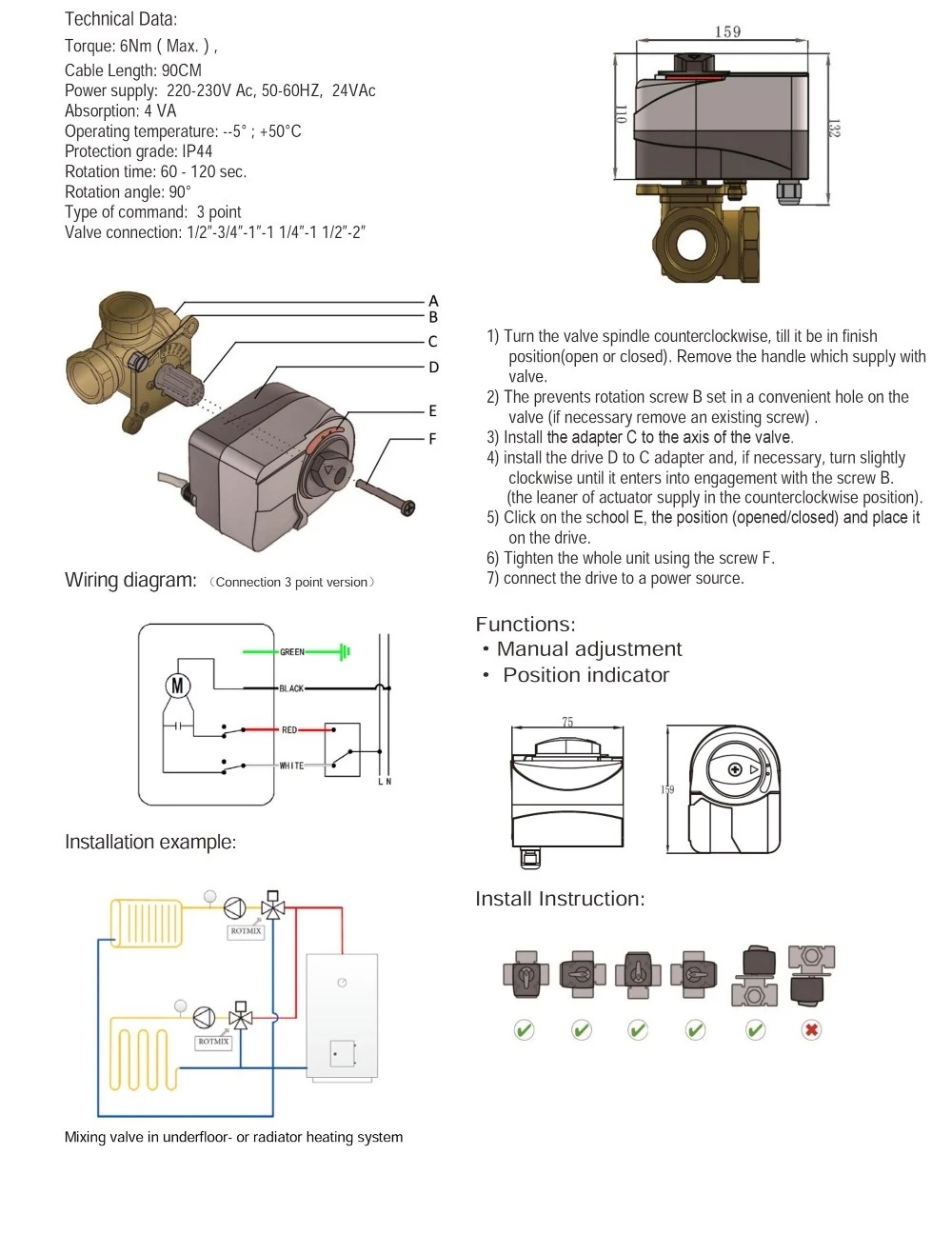

Installation Diagram
| Technical Data | |
| Torque | 6Nm(Max.), |
| cable Length | 90CM |
| Power supply | 220-230V Ac,50-60HZ,24VAc |
| bsorption | 4 VA |
| Operating temperature: | -5R; +50C |
| Protection grade | IP44 |
| Rotation time | 60- 120 sec. |
| Rotation angle | 90° |
| Type of command | 3 point |
| Valve connection | 1/2"-3/4"-1"-11/4-11/2"-2" |
Main Features
Actuator is mounted directly on the shaft of the valve body and is fixed with one screw. Fasteners supplied with the actuator. The mounting position of the actuator can be selected with step 90 degrees due to its small size and compact shape. It is suitable for most applications, including a pump block in a insulation. The angle of rotation is limited to 90 degrees. The actuator is connected to the valve by the sleeve (included in the package).
