Specializing in HVAC products
S7104A 10A 3A Wireless Thermostats
Category:
Thermostat
Summary:
Key word:
S7104A 10A 3A Wireless Thermostats

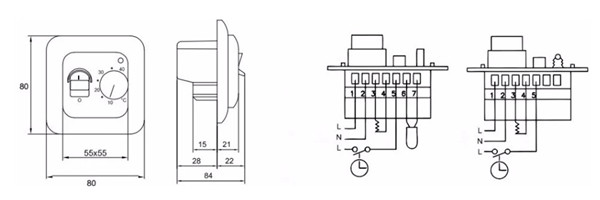

Diagram:
Application
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…
Technical data
Voltage: AC230V (AC110V / AC24V available)
Power consumption: 5W
Setting range: 4℃~45℃
Limitation scale: 25℃~50℃
Setback temperature: 5℃
Switching differential: ±0.5K
Ambient temperature: -5℃~50℃
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor,
Features
LED indicator is light when heating is on
With manual switch and knob for easy operation
On/off control output for heating device
Setback function when connecting with a programmable timer
Temperature limitation function for protecting the floor
