Specializing in HVAC products
S8204B Electric Thermal Actuator For Radiator Underfloor Heating Manifold
Category:
Actuators
Summary:
Key word:
S8204B Electric Thermal Actuator For Radiator Underfloor Heating Manifold
Features
* Actuator Voltage :AC230V 24VPower Consumption:2VA
* Stroke:3mm Running
* Time:3-5min
* Valve interface:Cap nut M30*1.5mm
* Ambient Temperature:-50~60 degree centigrade
* Cable Length:900mm
* Housing Material :Anti-flammable PC (anti-flammable PA66 as internal components )
* Protective Housing: IP54
* Mounting Position:Vertical position to 85° decline
Specification
Switch Type: Normally Closed
Voltage: 230V(220V)
Power consumption: 2VA
Thrust: 110N
Time: 3~5min
Environment temperature: -5~+60℃
Shell material: Flame retardant PA66
Enclosure protection class: IP41
Dimensions: 40x60mm/1.57x2.36inch
Connecting size: M30x1.5mm Nut
Lead wire length: 900mm
Color: White

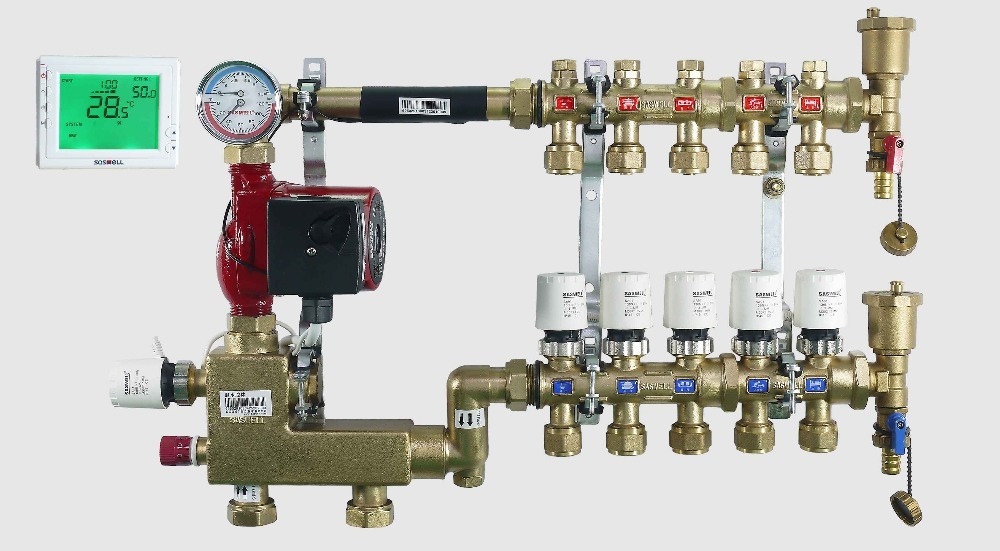

Product Show

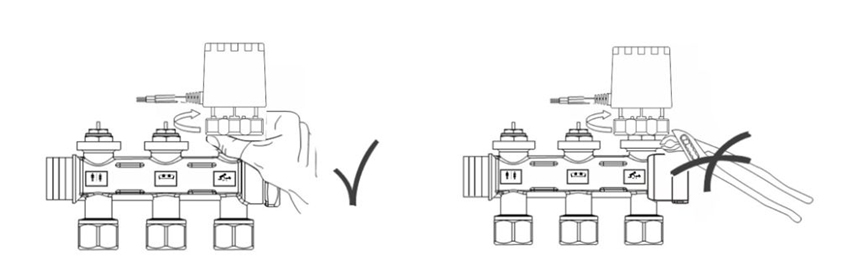

Installation
