S5132E 4-ways Electronic Mixing Valves

Electronic actuator is mounted directly on the shaft of the valve body and is fixed with one screw. Fasteners supplied with the actuator. The mounting position of the actuator can be selected with step 90 degrees due to its small size and compact shape. The angle of rotation is limited to 90 degrees. The actuator is connected to the valve by the sleeve (included in the package).

Product Application

Electronic actuators are compact and simple heating controllers that are installed directly onto the mixing valve and diverting valve.with function on/off.Compact design,fast installation, ease of use and reliability.

Technical Data

Torque: 6Nm(Max.)

Cable Length: 90CM

Power supply: 220-230V Ac, 50-60HZ, 24VAc

Absorption: 4 VA

Protection grade: IP44

Rotation time: 60 - 120 sec.

Rotation angle: 90°

Valve connection: 3/4",1"

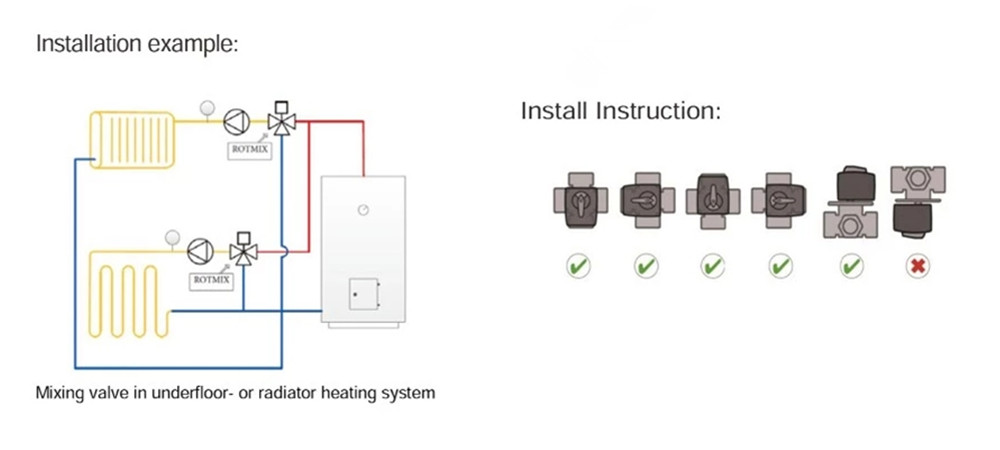

Installation
