S7210A Programmable Touch Screen Electric Underfloor Heating Thermostat

Category:

Thermostat

Summary:

E-mail:sapules03@163.com Tel:0086-576-87467790

Messages

Return to

Key word:

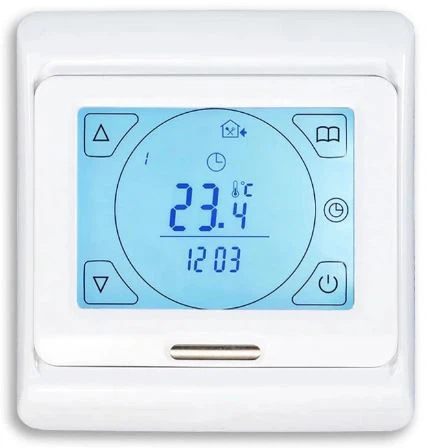

S7210A Programmable Touch Screen Electric Underfloor Heating Thermostat

Main Parameters:

Application : Electric Heating System

Type : Underfloor Heating Thermostat

Function : Room Temperature Control

Power Voltage : 110V~260V/50Hz,60Hz

Load Current : 16A OR 20A

Detection Temp. Range : 5-40℃

Set Temp. Range : 5-35℃

Control Temp. Range : 5-35℃

Accuracy : ±0.5℃

Certifications : CE, RoHS

Material : Anti-flammable PC +ABS

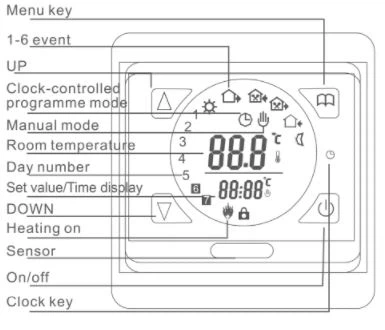

The front panel has a curved design, making E91H easier to clean and not easy to accumulate the dust. Which adopts touch screen control scheme, which is more beautiful and more fashionable.

E91H series heating series thermostats with weekly programmable cycle and LCD screen display function. It can set up 6 times a day with the corresponding set temperature of heating room temperature controller, and also can choose the mode of manual control or temporary control.The thermostat is recommended for control electronic heating devicesincluding electric heating system and carbon film heating system,etc.

The back shell is designed in accordance with European standards and is adapted to the installation requirements in most parts of the world.

It can only be designed to achieve 24 hours (4 times per day) programming seven days a week (6+1 OR 5+2) for energy saving and to make your body feel more comfortable. and it is widely used on hotel, hospital, school, office building and so on.

About Us:

● 6 years experience

● 8 professional engineers

● 2 years after-sales service

● ISO,CE, certified

● Annual sales 3,000,000PCS room thermostats and valves.

Quality Control:

● Wide Voltage test

● Fire prevention test

● Insulation test

● Aging test

● Overload test
