S3303N 2-12 ways Mixing Stainless Steel Manifolds

Category:

Manifold series

Summary:

E-mail:sapules03@163.com Tel:0086-576-87467790

Messages

Return to

Key word:

S3303N 2-12 ways Mixing Stainless Steel Manifolds

Specifications:

Valve Inlet Connection: 1in NPT

Material: 304 Stainless Steel

Nominal Pressure: ≤10bar

Adjustment scale 0-5

Working Temperature:t≤70℃

Applicable medium: cold and hot water

Actuator connection thread: M30x1.5

Connection branch pipe: 3/4”x16mm 3/4”x20mm

Surface Finish: Silver Stainless Steel Wire Drawing

Branch spacing: 50mm

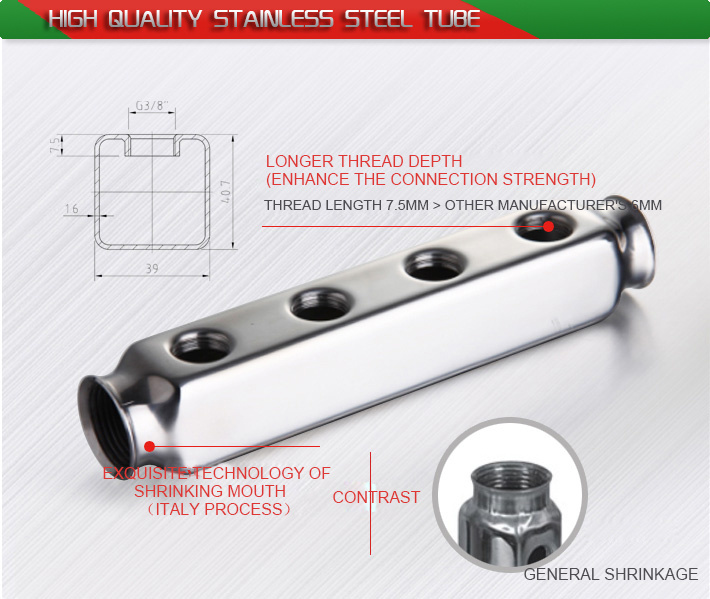

The manifold has a 304 stainless steel body material, which is resistant to corrosion and pressure and has a long service life. The manifold has passed pressure tests. The precise design makes your hydraulic system unobstructed, and the control details make you worth choosing.

Certificates:

ISO9001:2008

CCC

Warranty: 2years
