S7101A 10A 3A Thermostats

Category:

Thermostat

Summary:

Key word:

S7101A 10A 3A Thermostats

3A 10a Thermostat Room Temperature Controller

Technical parameter

Set Temperature Range: 10~30℃

Temperature Accuracy: +/-1℃

Rated Output Power: ＜200W

Consumable Power: ＜2W

Operating: AC 220+/-10%, 50/60Hz

Traverse Requirements: 0.5mm2≤Voltage≤2.5mm2

Figure Size: 86x86x13mm (Section diameter 86 standard box)

Aperture distance for installation: 60mm\

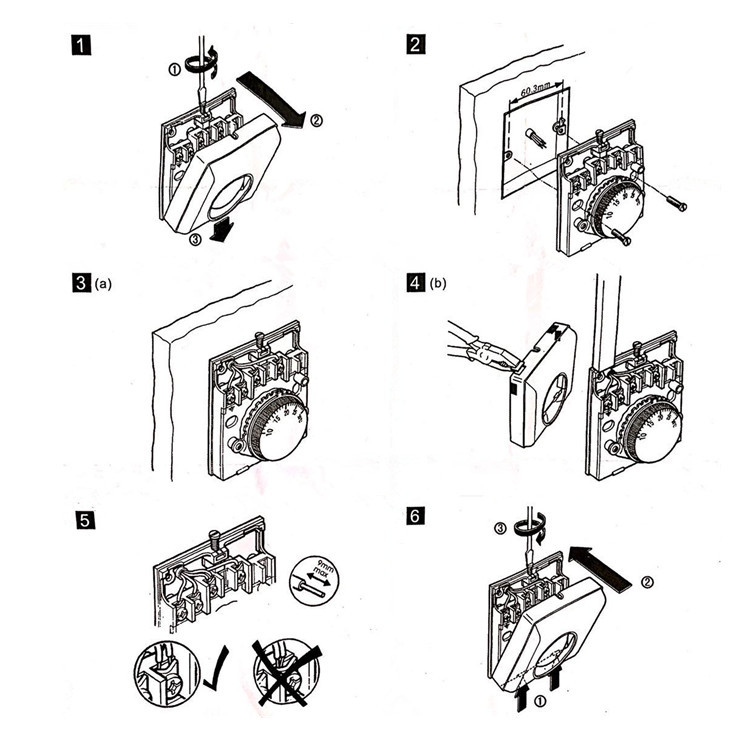

Room Temperature Controller Installation Guide
